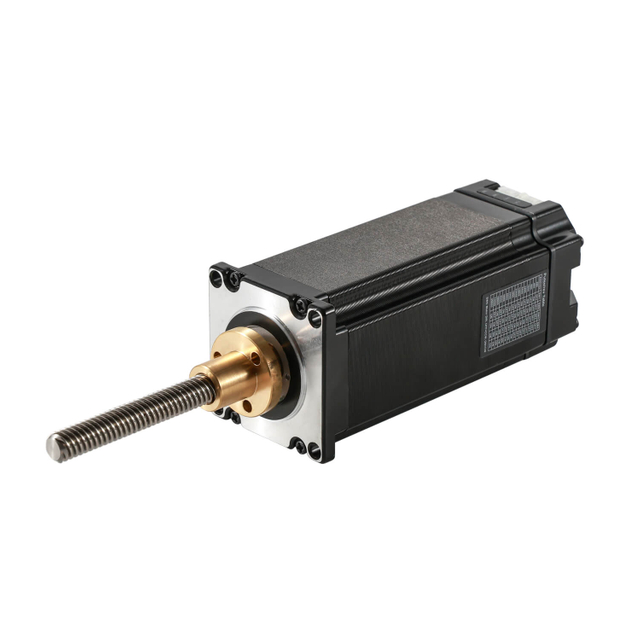

Integrated Linear Stepper Motor

What Is Integrtaed Linear Stepper Motor?

Intelligent linear stepper motors, combining integrated stepper servo motors and high precision screws for accuracy and convenience，compact actuators for linear positioning applications.

An integrated linear stepper motor is an advanced electromechanical device that combines a traditional stepper motor with a linear motion mechanism. Unlike conventional stepper motors that produce rotational motion, this integrated system converts rotary motion directly into precise linear movement without requiring additional transmission components like lead screws or belts. These motors are widely used in automation, medical devices, semiconductor manufacturing, and CNC machinery, where high-precision linear motion is required.

BesFoc Integrated Linear Stepper Motors:

BesFoc linear stepper motors come in several types, each suited to specific applications:

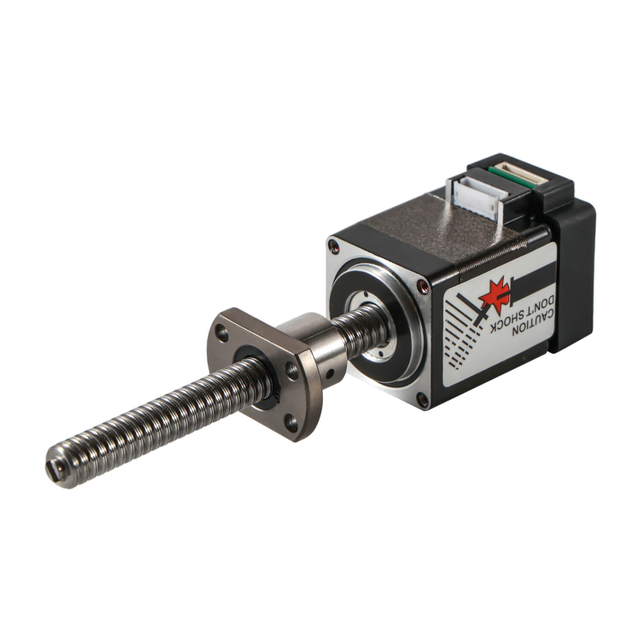

1. Integrated External Linear Stepper Motor (T-type and ball screw)

This type features an external threaded shaft. When the motor rotates, the shaft translates the rotary motion into linear motion. It is commonly used in applications requiring high-speed and long-stroke movements.

2. Integrated Captive Linear Stepper Motor

Captive motors include an integrated shaft and nut assembly that restricts the motion to linear travel. These motors are ideal for applications requiring guided motion.

3. Integrated Non-Captive Linear Stepper Motor

Non-captive motors allow the shaft to move freely while the nut remains stationary. They are versatile and used in applications where custom mounting is required.

In addition to providing high-performance hybrid stepper linear motors, BesFoc provides high-quality leadscrews and nuts, opening up new avenues for equipment designers who need high performance and superior durability. The BesFoc actuators generate more force than similar actuators due to their special stator geometry and optimized magnet materials.

Key Components of a Integrated Linear Stepper Motor

1. Stepper Motor Unit

The stepper motor serves as the driving force for linear motion. It has the following characteristics:

High positional accuracy: Operates in precise step increments.
No brushes: Ensures long lifespan with minimal maintenance.
Quick response: Supports rapid acceleration and deceleration, making it ideal for dynamic applications.

2. Linear Transmission Mechanism

The conversion of rotary motion to linear motion is achieved using:

Lead Screws: Common in standard linear stepper motors for moderate precision and cost-effective applications.
Ball Screws: Used in high-precision applications due to their low friction and high efficiency.
Belt Drives: Suitable for long-travel and high-speed applications but with slightly lower precision.

3. Driver and Controller

The stepper motor driver determines motion smoothness and precision. Advanced digital controllers enable microstepping technology, which minimizes noise and vibrations. Some integrated systems also include closed-loop control, ensuring accurate positioning without losing steps.

How Does a Integrated Linear Stepper Motor Work?

Linear stepper motors operate on the same fundamental principles as rotary stepper motors, utilizing electromagnetic forces to create motion. Below is a breakdown of their operation:

1. Electromagnetic Coils:

The motor consists of electromagnetic coils arranged in a sequence. When these coils are energized in a controlled pattern, they generate a magnetic field that interacts with the motor's permanent magnets.

2. Stepper Design:

Linear stepper motors use a threaded rod or a toothed belt to convert the rotational steps into linear steps. The precision of the movement depends on the design of the thread or belt.

3. Incremental Steps:

The motor moves in discrete steps, offering precise control over positioning. By controlling the sequence and frequency of electrical pulses sent to the coils, the motor can achieve exact movements.

Advantages of Integrated Linear Stepper Motors

1. Compact and Space-Saving Design

Unlike traditional stepper motors that require additional external linear actuators, integrated models provide an all-in-one solution, reducing system complexity and installation space.

2. High Precision and Accuracy

Stepper motors inherently offer high-precision movement due to their discrete step angles. When combined with microstepping controllers and precision lead screws, they achieve sub-micron positioning accuracy.

3. Low Maintenance and Long Service Life

Because no additional transmission mechanisms (like gears or belts) are needed, integrated linear stepper motors experience less wear and tear, leading to extended operational life with minimal maintenance.

4. Easy Control and Integration

Compatible with standard stepper motor drivers.
Can be controlled via PLC, microcontrollers (Arduino, Raspberry Pi), or motion control systems.
Supports open-loop and closed-loop control for improved precision.

Applications of Integrated Linear Stepper Motors

1. Medical Devices

Syringe Pumps: Ensures precise fluid delivery for medical treatments.
Imaging Equipment: Used in MRI and CT scanners for accurate positioning.

2. Semiconductor Manufacturing

Wafer Handling Systems: High-precision linear motion ensures accurate chip placement.
Lithography Machines: Requires sub-micron movement accuracy.

3. Industrial Automation

XYZ Motion Stages: Found in robotic arms, assembly lines, and laser cutting machines.
Pick-and-Place Systems: Enhances efficiency in automated manufacturing.

4. CNC Machines & 3D Printers

3D Printing Heads: Provides precise XYZ-axis control for detailed prints.
CNC Milling Machines: Ensures high-speed, accurate cutting and engraving

How to Choose the Right Integrated Linear Stepper Motor?

1. Determine Load Requirements

Light Loads: Lead screws provide an economical solution.
Heavy Loads: Ball screws offer higher efficiency and load capacity.

2. Precision and Resolution Considerations

High-Precision Needs (<5μm): Microstepping controllers and ball screw integration are recommended.
Standard Precision (50-100μm): Lead screws can be sufficient.

3. Speed and Acceleration Requirements

High-Speed Motion (>500mm/s): Belt-driven systems provide rapid travel.
Low-Speed Precision (<100mm/s): Microstepping technology enhances accuracy.

4. Environmental Factors

Cleanroom Conditions: Low-dust, sealed designs are required.
Harsh Environments: Motors with IP65-rated protection resist moisture and contaminants.
